"Kolibri V" carted rake is very reliable and simple in operation. It can be used in all areas of plain agriculture for highcrop sowed and natural hay-mowing harvesting. Distinctive feature of carted rake is multifunction ability. It can perform several kinds of field operations: raking the mass from wide swath into roll, wrapping the swaths, shaking the mass in swath.
Option: additional central wheel.
"Kolibri V" carted rake is very reliable and simple in operation. It can be used in all areas of plain agriculture for highcrop sowed and natural hay-mowing harvesting. Distinctive feature of carted rake is multifunction ability. It can perform several kinds of field operations: raking the mass from wide swath into roll, wrapping the swaths, shaking the mass in swath.
Option: additional central wheel.
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Video
- Ask a question
-
Quality advantages of carted rake Kolibri V
Hydraulic control

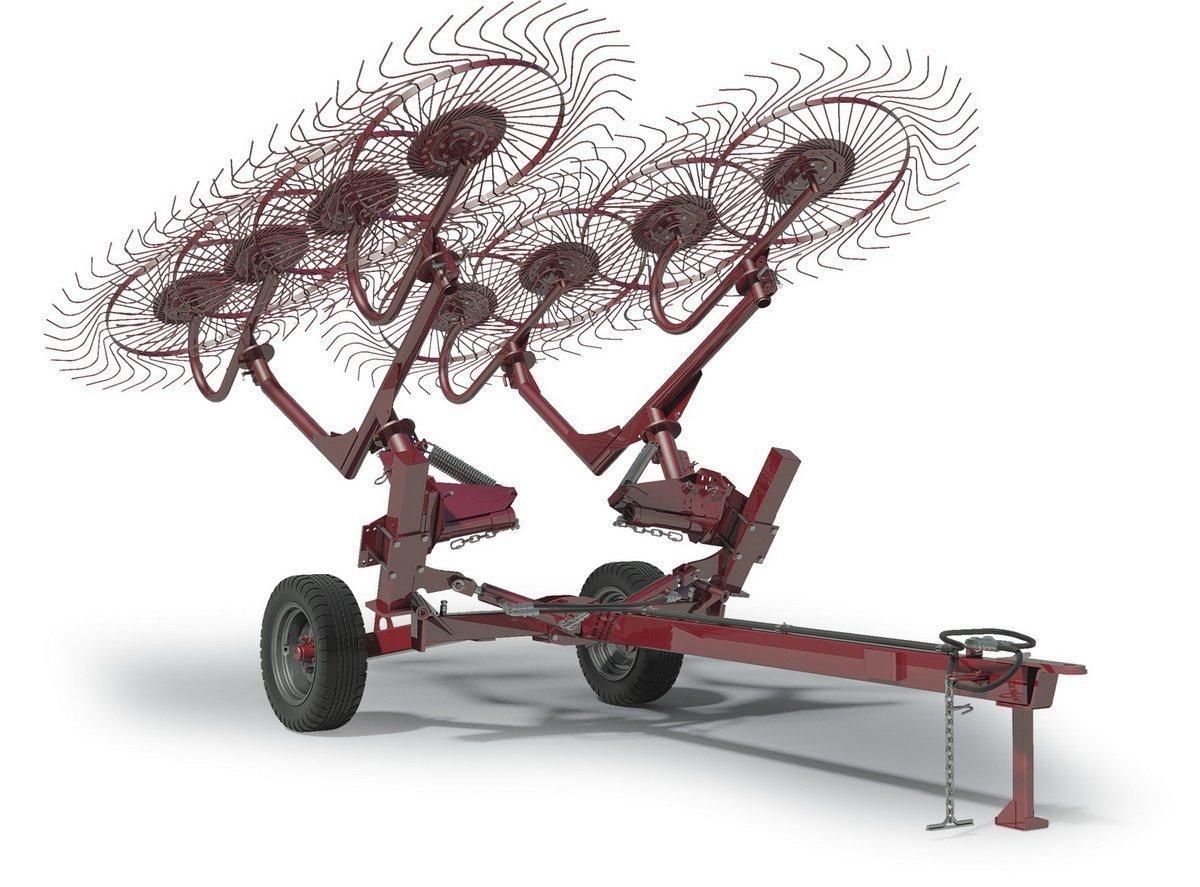

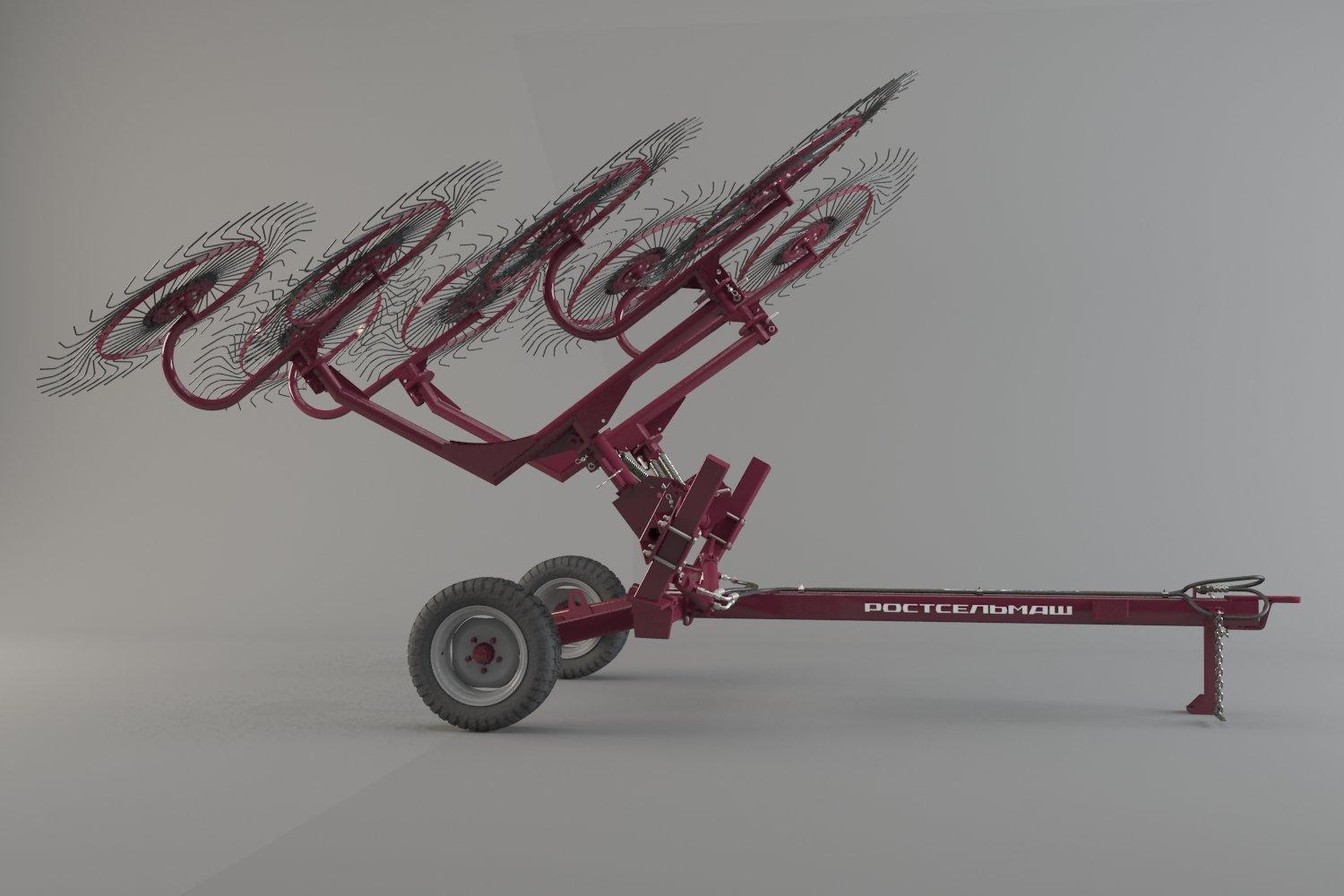

ГрабThe rake can be easily folded/unfolded from transporting position into operating one and back by means of hydraulic system controlled from the tractor cabin.
Frame and wheels
The rake main mechanisms – frame and towbar – are made of special square pipes providing special durability to the whole structure.
Protective care and economy
Discharging springs installed on turning struts provide minimal damage to root system of sowed and natural grass during the process of raking, fluffing and wrapping the hay swaths. The mass is not contaminated with soil, while low resistance of rake when moving along the field saves the fuel, in its turn.
Reliability
The teeth of specially treated spring steel installed on working elements provide durable operation, and the teeth special geometry allows to work for twisting in two planes without failures, even in case of hitting stones. -

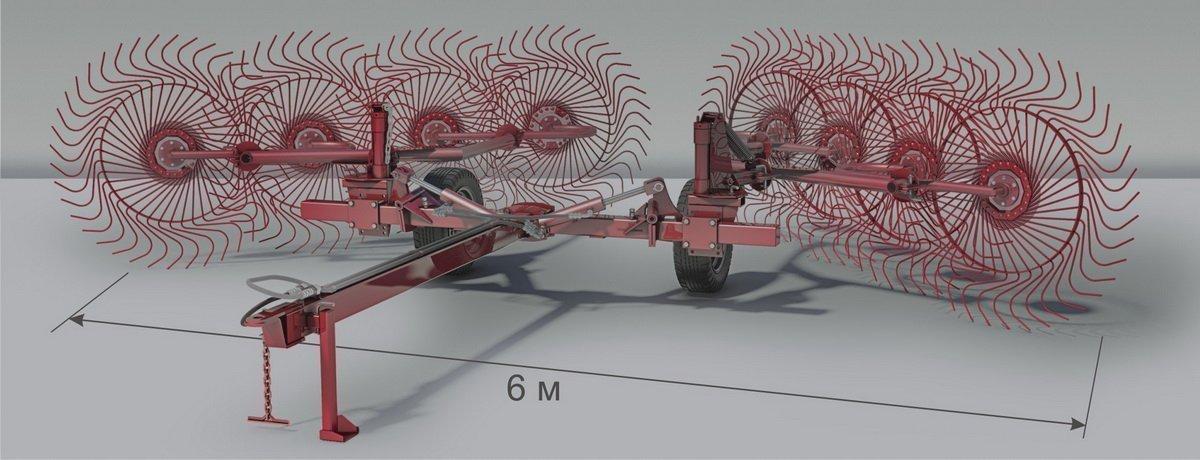

Technical specification Efficiency per 1 hour, hectare/hour, up to 6 Operating speed, km/h, not more than 12 Working width (design), m, up to 6 Overall dimensions, mm, not more than:
Working position:
-length
-width
-height
5510
6150
1450transportation position:
-length
-width
-height
5455
3630
2695Weight, kg, not more than 590 -
-
